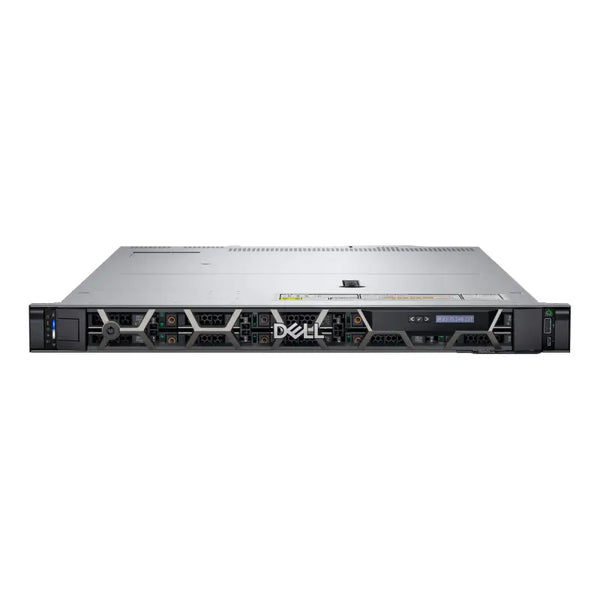

Dell PowerEdge R250 1U Rack Server
Backplane | 3.5" × 4 |
---|---|
CPUs | 1 |
CPU | Intel Xeon E-2314 |
Clock Speed | 2.8 GHz |
Cores | 4 |
Threads | 4 |
Cache | 8.0 MB |
RAM | 8 GB |
Transfer Rate | 3200 MT/s |
BOSS | 2 × 240 GB M.2 SATA SSD |
RAID Controller | PERC H355 |
Storage | 2 × Dell 4 TB 7.2K SATA HDD |
NIC | Broadcom 5720 Dual Port 1 GbE |
PSUs | 1 |
PSU Power | 450 W |
Accessories |
Front Bezel Rack Kit |
Software | iDRAC Enterprise |
Warranty | 3 Years Next Business Day On-Site |
Manufacturer | Intel |
---|---|
Brand | Xeon E |
Generation | 3 |
Chipset | C250 |
Socket | FCLGA1200 |
Sockets | 1 |
Max Speed | 3.7 GHz |
Max Cores | 8 |
Max TDP | 80 W |
Generation | DDR4 |
---|---|
Type | ECC UDIMM |
Voltage | 1.2 V |
Slots | 4 |
Max Speed | 3200 MT/s |
Max Capacity UDIMM | 128 GB |
Form Factors | 3.5 | ||
---|---|---|---|
Interfaces | SATA, SAS | ||
Front Bay Options | 3.5 × 4 hot-swap | 3.5 × 2 cabled | 3.5 × 4 cabled |
Rear Bay Options | None | ||
Max Drives | 4 | ||
Max Capacity | 30.72 TB |
Boot • OS | BOSS-S1 | |||
---|---|---|---|---|
Internal | S150 | HBA 355i | H345 | H755 |
External | HBA 355e |
Generation | 4 |
---|---|
Slots | 2 |
Max Slots @ x16 | None |
GPU Options | None |
Embedded Options | 2 × 1 GbE |
---|---|
NIC Options | PCIe x8 |
Internal optional | 1 × USB 3.0 | ||||
---|---|---|---|---|---|
Front | 1 × micro-USB [iDRAC] | 1 × USB 2.0 | |||
Rear | 1 × USB 2.0 | 1 × USB 3.0 | 1 × RJ45 [iDRAC] | 1 × RS232 | 1 × VGA |
Redundancy | Yes | |
---|---|---|
240 VAC W Bronze | 450 | |
240 VAC W Platinum | 450 | 700 |
240 VAC W Titanium | 700 | |
240 VDC W Titanium | 700 |
Microsoft Windows Server | 2016 LTSC | 2019 LTSC | 2022 LTSC |
---|---|---|---|
VMware ESXi | 7.0 U3 | 8.0 | 8.0 U1 |
Red Hat Enterprise | 8.4 - 8.8 | 9.0 - 9.1 | |
Ubunutu Server | 20.04 LTS | 22.04 LTS | |
SuSE | ES 15 |
Embedded iDRAC 9 | Direct | Service Module | RESTful API | ||
---|---|---|---|---|---|
Software OpenManage | Enterprise | Mobile | |||
Plugins | Power Manager | Update Manager | Support Assist | ||
Integrations | Microsoft System Center | VMware vCenter | VMware vRealize Operations Manager | Red Hat Ansible | BMC Truesight |
Connections | IBM Tivoli Netcool OMNIbus | IBM Tivoli Network Manager IP Edition | Nagios Core | Nagios XI |
Depth | 585 mm | 23.03 in |
---|---|---|
Depth with bezel | 598.64 mm | 23.56 in |
Width | 434 mm | 17.08 in |
Width ear to ear | 482 mm | 18.97 in |
Height | 42.8 mm | 1.7 in |
Height rack units | 1U |
3.5 × 2 / 3.5 × 4 | 12.48 kg | 27.51 lb |
---|
