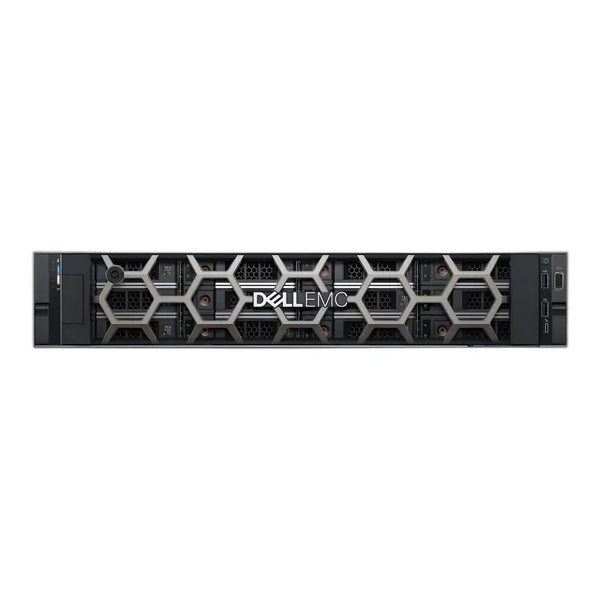

Dell PowerEdge R750 2U Rack Server
Dell PowerEdge R750 2U Rack Server
Key Features
  • 32 Cores
  • 1TB DDR4 RAM
  • BOSS 2 x 480 GB M.2. SSD
    •
    Configuration close to what you're looking for?
    Let us know, as we build to your specification.
    £6,800.00
    Contact us today
    CPUs 2
    CPU Intel Xeon Gold 6326
    Clock Speed 2.9 GHz
    Cores 16
    Threads 32
    Cache 24.0 MB
    RAM 1.0 TB
    BOSS 2 × 480 GB M.2 SATA SSD
    NIC Broadcom 5720 Dual Port 1 GbE LOM
    PSUs 2
    PSU Power 800 W
    Accessories Front Bezel
    Rackmount Kit
    Warranty Dell 5 Years 24×7 Mission Critical 4-Hour Response
    Copy Config
    CPU • Processor
    Manufacturer Intel
    Brand Xeon
    Generation 3
    Chipset C620
    Socket FCLGA4189
    Sockets 2
    Max Speed 3.6 GHz
    Max Cores 40
    Max TDP 270 W
    RAM • Memory
    Generation DDR4
    Type ECC RDIMM, LRDIMM, Optane
    Voltage 1.2 V
    Slots 32
    Max Slots Optane 16
    Max Speed 3200 MT/s
    Max Capacity RDIMM 2 TB
    Max Capacity LRDIMM 8 TB
    Max Capacity Optane 12 TB
    Drives • Storage
    Form Factors 2.5, 3.5
    Interfaces SATA, SAS, NVMe
    Front Bay Options 2.5 × 8 2.5 × 16 2.5 × 24 3.5 × 12
    Rear Bay Options 2.5 × 2 2.5 × 4
    Max Drives 28
    Max Capacity 430.28 TB
    RAID • Storage Controllers
    Boot • OS BOSS-S1 BOSS-S2
    Internal S150 HBA 355i H345 H745 H755 H755N
    External HBA 355e H840
    PCIe • Expansion Cards
    Generation 4
    Slots 8
    Max Slots @ x16 6
    GPU Options 2 × 300 W 3 × 150 W 6 × 75 W
    Networking
    Embedded Options 2 × 1 GbE
    NIC Options 1 × OCP 3.0 PCIe x8
    I⁄O Ports
    Internal 1 × USB 3.0
    Front 1 × micro-USB [iDRAC] 1 × USB 2.0 1 × VGA
    Rear 1 × USB 2.0 1 × USB 3.0 2 × RJ45
    Rear optional 1 × RS232 1 × VGA
    PSU • Power Supply
    Redundancy Yes
    240 VAC W Platinum 800 1400 2400
    240 VAC W Titanium 700 1100 1800 2800
    48/60 VDC W 1100
    OS • Operating Systems
    Microsoft Windows Server 2016 LTSC 2019 LTSC 2022 LTSC
    VMware ESXi 6.7 U3 7.0 U2 7.0 U3 8.0 8.0 U1
    Red Hat Enterprise 7.9 8.2 - 8.8 9.0 - 9.1
    Ubuntu Server 20.04 LTS 22.04 LTS
    SuSE ES 15
    Oracle 8, 9
    Wind River 21.12 22.12
    OoB • Management
    Embedded iDRAC 9 Direct Service Module Quick Sync 2
    Software OpenManage Enterprise Mobile
    Plugins Power Manager Update Manager Support Assist
    Integrations Microsoft System Center VMware vCenter VMware vRealize Operations Manager Red Hat Ansible BMC Truesight
    Connections IBM Tivoli Netcool OMNIbus IBM Tivoli Network Manager IP Edition Nagios Core Nagios XI
    Size
    Depth 758.3 mm 29.85 in
    Depth with bezel 772.14 mm 30.39 in
    Width 434 mm 17.08 in
    Width ear to ear 482 mm 18.97 in
    Height 86.8 mm 3.41 in
    Height rack units 2U
    Weight
    No Backplane 27.7 kg 61.06 lb
    2.5 × 8 29.6 kg 65.25 lb
    2.5 × 16 32.6 kg 71.87 lb
    2.5 × 24 35.2 kg 77.60 lb
    3.5 × 12 35.3 kg 77.82 lb
